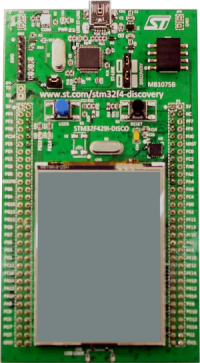

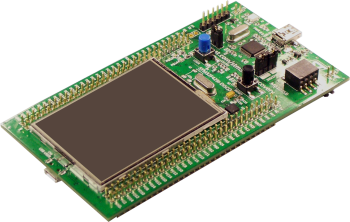

STM32F429-DISCOVERY - ARM board with touch LCD

Product groups > hardware > STM32F429-DISCOVERY - ARM board with touch LCD

more pictures

developer board STM32F429-Discovery of the STM-processor family -
with integrated color grafic touch LCD

Manufacturer's designation: STM32F429I-DISC1
How can I program a popular microcontroller of the STM32F4 series? You can learn it with the help of the STM32F429-Discovery and realize own applications. An introduction in the ARM technology with modern touch display make it possible for newcomers and professionals.
The STM32F429-Discovery use the ARM Cortex M4 controller STM32F429ZIT6 and has included ST-Link/V2 to programm and debug. It has also a touch grafic LCD, a 3 axes acceleration sensor and gyroscope, an additional SDRAM 64 Mbits for high-definition grafic and a free programable USB conect.

Properties

microcontroller STM32F429ZIT6 (144 pins) with
- 32 Bit ARM Cortex-M4 MCU
- 180 MHz
- 2 MByte flash
- 256 KByte RAM
2.4" color touch grafic LCD
- 2.4 inches
- 240 x 320 pixel, QVGA
- illumination
64 MBit SDRAM
- for graficdata with high color depth
3 axes acceleration sensor
- = digital gyroscope
6 LEDs
- 1 for USB communication
- 1 Power-LED for 3.3 V
- 2 for own use
- 2 LEDs for USB on-the-go
2 buton
- 1 for reset
- 1 for own use
programmer onboard

Functions

ST-Link/V2 for programming and debugging onboard
With the help of a jumper the board also can be used as ST-Link/V2 for programming and debugging external microcontrollers (over SWD-connection)
power supply of the board over USB or external over 3V e.g. 5V
3V and 5V are available for external peripheral equipment
Connection external peripheral equipments over USB with micro USB-cable
the pins of the microcontroller are outward over multi-pin connectors

example of use / tutorials

You can find helps for the programming of the display in our download-area and in the follow tutorials.
Please note: The tutorials are only in german.

Recommendation of software

Please Attention that SiSy Microcontroller++ is only in German.
The substantial range of function of this board is optimally supported by SiSy Microcontroller++ for the development of own program. SiSy Microcontroller++ is a software package for designing, writing, dating, burning and checking the self developed program. There are features of an easy development for programming available and its possible to work with UML. The own work will be optimized with a sample program and integrated facilities.
Here you can find continuing information about SiSy Microcontroller++.

system requirements for Discovery-board

PC with Windows 7 / 8 / 10
Mini USB-cable

system requirements for SiSy

STM32F429-DISCOVERY - ARM board with touch LCD STM32F429 Dicovery - ARM developer board with integrated color grafic touch LCD with 240x320 pixel Manufacturer's designation: STM32F429I-DISC1 mikrocontroller STM32F429ZIT6 MCU (144 pins) 2,4" Color Touch Grafic LCD with background illumination 240x320 pixel programmer onboard In- and output devices	list price: 79.95 Euro
